10 Best DC Electronic Loads for Bench Testing in 2026

Choosing the right bench load can make power-supply testing faster, safer, and far more repeatable. The best dc electronic loads help you validate output current, check battery capacity, and simulate real-world operating conditions with confidence.

In this roundup, we focus on practical specs that matter most: voltage and current range, power rating, control modes, dynamic performance, and interface options for lab or production use.

Best 10 Dc Electronic Loads Picks for 2026

Precision Lab Load – Rigol DL3021 Programmable DC Electronic Load

If you need dc electronic loads for accurate bench testing, the Rigol DL3021 is built for precision work in R&D, battery discharge testing, and power-supply validation. Its CC, CV, CR, and CP modes plus 15kHz dynamic operation make it a strong fit for engineers who want detailed control and responsive load changes.

Best For: R&D engineers, battery testing, and automated power-supply verification.

Pros:

• Supports CC, CV, CR, and CP modes for broad test coverage
• 15kHz dynamic mode with adjustable rising speed from 0.001 A/μs to 5 A/μs
• 4.3-inch TFT LCD shows multiple parameters and real-time curves
• LAN, USB, and RS232 control with SCPI support for automation

Cons:

• 200W class load may be limiting for higher-power setups
• Desktop design is geared more toward bench use than portability
• Advanced features may be more than casual users need

Overall, the DL3021 stands out when you want a programmable load with strong visibility, fast dynamics, and straightforward integration into test systems. It is well suited to serious lab use where repeatable results matter.

Budget Battery Tester – 150W 20A Adjustable Constant Current Load

For shoppers comparing dc electronic loads on a tighter budget, this 150W unit focuses on battery discharge testing and basic programmable load functions. The TFT display and four operating modes give you the essentials for checking capacity, resistance, and discharge behavior without a more advanced lab instrument.

Best For: Budget battery capacity testing and simple discharge monitoring.

Pros:

• 150W maximum power and 20A maximum load current
• Four modes: constant current, constant voltage, constant power, and constant resistance
• 2.4-inch TFT screen shows voltage, current, power, capacity, internal resistance, and more
• Adjustable protection and stop settings, plus external NTC temperature monitoring

Cons:

• Lower power rating than higher-end programmable loads
• Best suited to basic load testing rather than advanced automation
• Battery-powered design may not fit every bench workflow

This model makes sense if you want a straightforward electronic load for lithium battery checks and practical discharge testing. It offers a useful feature set for the price, especially when you do not need full lab-grade connectivity.

Balanced Bench Load – Siglent SDL1020X-E Programmable DC Electronic Load

This Siglent model is a practical choice if you want dc electronic loads with strong bench capability and clean programmability. It supports 150V/30A operation, 200W total power, and dynamic testing features that help with power-supply and converter evaluation.

Best For: General bench testing, power-supply validation, and automated load profiles.

Pros:

• Supports CC, CV, CR, and CP static modes
• Dynamic mode includes 25kHz CC response and 12.5kHz CP response
• List function allows editing up to 100 steps
• Adjustable current rise time from 0.001 A/μs to 2.5 A/μs

Cons:

• Single-channel design may limit multi-load workflows
• 200W rating may be modest for larger power systems
• Display and interface details are less emphasized in the supplied specs

The SDL1020X-E is a solid middle-ground option for users who want a programmable load with useful dynamic behavior and step-based testing. It is especially appealing when you need repeatable load profiles without moving up to a larger rack system.

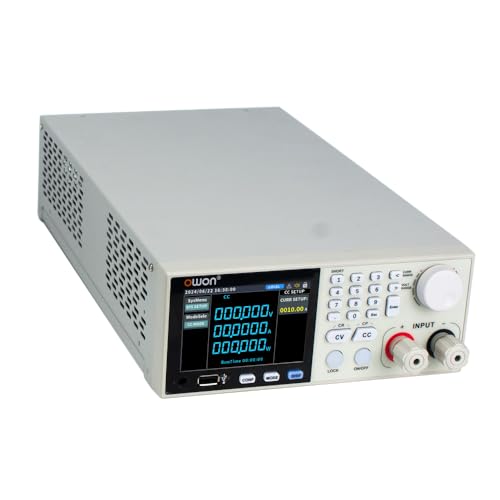

Rack-Ready High Power Load – OWON OEL8512 400W Programmable DC Load

When your dc electronic loads need more output range and easier system integration, the OWON OEL8500 series brings a rack-friendly design with strong dynamic performance. The OEL8512 variant combines 150V/40A capability, 400W power, and fine readback resolution for detailed power testing.

Best For: Rack-mounted testing, automated labs, and higher-power verification work.

Pros:

• 400W, 150V/40A configuration with rack-mountable 1/2 2U form factor
• Up to 5kHz dynamic load response with adjustable slew rates
• 1 mV / 0.1 mA readback resolution for precise measurements
• RS232, RS485, USB, and SCPI support for automation

Cons:

• More expensive and specialized than basic desktop loads
• Rack-oriented size may be unnecessary for casual bench users
• Dynamic speed is lower than the fastest lab-focused models

For users who need a programmable load with solid power handling, accurate readback, and broad connectivity, the OEL8512 is well positioned. It fits labs and production setups that value repeatable control and rack integration.

Dual-Channel Power for Bench Testing – ET5420A+ 400W Programmable DC Load

If you need dc electronic loads for higher-throughput bench work, the ET5420A+ stands out for its two independent channels and broad 0-150V operating range. It’s built to handle battery, LED, charger, and power supply testing with multiple modes and built-in discharge and capacity functions.

Best For: Users who want a dual-channel programmable load for battery, LED, and power-supply testing.

Pros:

• Two independent 200W/20A channels, or 400W total when used together
• Supports CC, CV, CR, CP, CC+CV, and CR+CR test modes
• Includes battery discharge, capacity, internal resistance, and LED test functions
• 1mV/1mA resolution with USB and RS485 connectivity

Cons:

• Maximum channel power may be limiting for heavier single-load tests
• Full feature set may be more than casual users need
• Requires understanding of programmable load modes to get the most from it

Overall, this is a flexible dc electronic loads option if you want two channels, fine resolution, and a broad set of test functions in one bench unit.

Compact Lab Load with Fast Dynamics – OWON OEL1515 150W DC Electronic Load

The OWON OEL1515 is a practical pick among dc electronic loads if you want automated control and dynamic testing in a compact bench format. It covers up to 150V and 15A, adds SCPI support, and offers a 5kHz dynamic mode for checking transient response.

Best For: Lab users and production setups that need automated control and fast dynamic testing.

Pros:

• USB, RS232, and RS485 connectivity with SCPI protocol support
• 5kHz dynamic testing with adjustable current rise rate
• Built-in battery charge/discharge testing with PC software
• 2.8-inch TFT display with 1mV/0.1mA resolution

Cons:

• 150W maximum power is lower than larger bench loads
• Single-channel design may not suit higher-throughput testing
• Best features depend on using the software and interfaces

For buyers focused on controlled testing rather than raw load capacity, this OWON unit offers useful automation, fast switching, and solid measurement visibility.

Feature-Rich 400W Tester – ET5410A+ 400W Programmable DC Load

If you’re comparing dc electronic loads for general-purpose bench use, the ET5410A+ offers a strong mix of capacity, modes, and protection features. Its 400W rating, 0-150V range, and support for charger, supply, LED, and battery testing make it versatile for everyday evaluation work.

Best For: Buyers who want a versatile programmable load with broad test functions and straightforward operation.

Pros:

• 400W capacity with 0-150V and 0-40A support
• 12 common modes plus dynamic, scanning, list, and short-circuit tests
• 2.8-inch TFT LCD with an intuitive interface and key lock
• Includes OVP, OCP, OPP, OTP, and reverse-polarity prompt protection

Cons:

• Single-channel design may not suit parallel testing needs
• USB connectivity is basic compared with models offering more interfaces
• Advanced mode set may be more than simple load testing requires

This model is a balanced option if you want a capable bench load with plenty of test modes and strong safety features without moving into a more complex dual-channel platform.

Precision Battery & Component Tester – ET5420A+ Programmable DC Load

If you need dc electronic loads for battery work, component checks, or power-supply testing, the ET5420A+ is built around precision and flexibility. It offers CC, CR, CV, and CP modes plus high-resolution readout, making it a practical fit when you want controlled discharge and repeatable measurements in one compact tester.

Best For: Battery manufacturers, lab users, and technicians who want a versatile programmable load with strong safety protections.

Pros:

• 400W, 150V, 20A*2 rated design supports a broad range of testing tasks.
• High-resolution control and measurement down to 1mV/10mV and 1mA/10mA.
• Battery discharge functions support CC and CR testing for capacity and internal resistance checks.
• 2.8-inch TFT display, key lock, and over-voltage/current/power/temperature protection.

Cons:

• Best suited to users who need a feature-rich tester rather than a basic load.
• Included notes emphasize industrial and lab use, so it may be more than casual hobby setups need.

Overall, the ET5420A+ is a strong choice when precision and test coverage matter more than simplicity. Its battery, LED, and general load functions make it a capable all-around bench tool for structured testing workflows.

High-Capacity Load Detector – ET5410A+ 400W Programmable Tester

For shoppers comparing dc electronic loads for power supplies, chargers, USB devices, and batteries, the ET5410A+ offers a practical mix of power handling and test functions. Its 0-150V, 0-40A, 0-400W range, along with multiple measurement modes, makes it a useful bench tester for routine capacity and load checks.

Best For: Users who want a versatile 400W programmable load for battery, power-supply, and charger testing.

Pros:

• 400W, 150V, 40A capability covers a wide testing range.
• Six basic measurement modes include CC, CV, CR, CP, CC+CV, and CR+CR.
• Supports battery test, LED test, dynamic test, scanning test, list test, and internal resistance testing.
• USB port and built-in protection functions add convenience for bench use.

Cons:

• Included notes list the unit as battery powered, which may not suit every workflow.
• The feature set is broad, so users wanting only a simple load may not need all of it.

This model stands out if you want one tester that can handle several common bench jobs without changing equipment. It combines practical controls, multiple test modes, and broad compatibility for a solid all-purpose load tester.

Compact Lab Load Analyzer – ET5407A+ 200W USB-Controlled Tester

If you want dc electronic loads for lab R&D or compact bench testing, the ET5407A+ focuses on high-resolution control in a smaller 200W package. It supports CC, CV, CR, and CP modes, plus battery discharge and multiple specialized test functions, making it a flexible choice for detailed evaluation work.

Best For: Lab users and engineers who want a compact programmable load with USB remote control and fine measurement resolution.

Pros:

• 200W rating with 0-180V and 0-30A support for a wide range of DC devices.
• High-resolution 1mV/10mV and 1mA/10mA control for precise tests.
• Includes CC/CR battery discharge testing with up to 9999Ah capacity measurement.
• USB communication, data storage, and remote control support automated workflows.

Cons:

• Lower power rating than 400W class models, so it is less suited to heavier loads.
• Its advanced modes may be more than needed for simple charger checks.

The ET5407A+ is a strong fit when precision, compact size, and workflow control matter more than maximum wattage. For research benches and careful battery evaluation, it offers the right mix of resolution, protection, and remote operation.

How We Picked These Dc Electronic Loads

We prioritized models with useful bench ranges, stable operation, and the modes most buyers actually need. That means looking at maximum voltage, current, and wattage first, then checking whether the unit supports CC, CV, CR, and CP operation. We also favored units with clear displays, decent readback resolution, and USB or serial connectivity for automation or logging.

Because Dc Electronic Loads are used for both power-supply testing and battery work, we also considered dynamic response, channel count, and whether the device is better suited to light bench diagnostics or heavier-duty lab testing.

Quick Comparison: What Matters Most

If you need a compact lab tool for moderate current draws, a 150W class unit can be enough. For power supplies, chargers, and battery packs that demand more headroom, 200W to 400W models are the safer choice. Single-channel units are usually simpler and more affordable, while dual-channel designs are better when you need to test two outputs or compare performance side by side.

Resolution and response speed also matter. Higher readback precision helps when you are setting thresholds or verifying efficiency, while faster dynamic loading is useful for transient testing and control-loop checks.

Key Buying Factors for Dc Electronic Loads

Power, Voltage, and Current Limits

Always choose a unit with extra margin above your expected test conditions. A load rated for 150V and 20A may be enough for small adapters and battery packs, but higher-power supplies often benefit from 30A or 40A capacity and 200W or more.

Operating Modes

CC is the most common mode for basic load testing. CV, CR, and CP add flexibility for battery discharge, resistance simulation, and constant-power evaluation. If you test a wide variety of devices, multiple modes are worth the extra cost.

Dynamic Behavior and Control

For tuning converters or checking stability, dynamic mode and fast response are especially valuable. If you need logging or automated test sequences, look for USB, RS232, or similar connectivity.

Display and Accuracy

Readable front-panel data saves time. Finer voltage and current readback can improve confidence when validating low-current behavior or comparing performance across similar power supplies.

Who Should Buy Which Dc Electronic Loads?

Choose a compact 150W unit if you mainly test small electronics, chargers, or battery packs and do not need high current headroom. Step up to a 200W or 400W model if you work with bench power supplies, larger batteries, or higher-current DC sources. Dual-channel options make sense for service benches, production environments, or anyone comparing outputs in parallel.

If you are buying Dc Electronic Loads for routine lab work, the safest choice is usually the model with the most headroom, the modes you will actually use, and the best interface support for your workflow.
